Step 6: Noise Filter¶
R35 and C11 form a noise filter for the output from the amplifier.
Tools Needed¶
- Soldering iron
- Cutter
Parts Needed¶

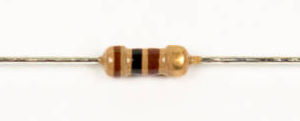

- 1 x 100Ω resistor
- 1 x 0.1μF capacitor
Instructions¶
-

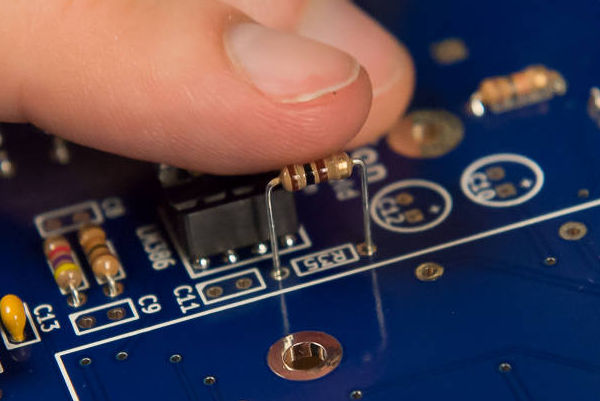

Solder the 100Ω resistor into R35.
-
Solder the 0.1μF capacitor into C11.
